SHARGE

• Product Feature

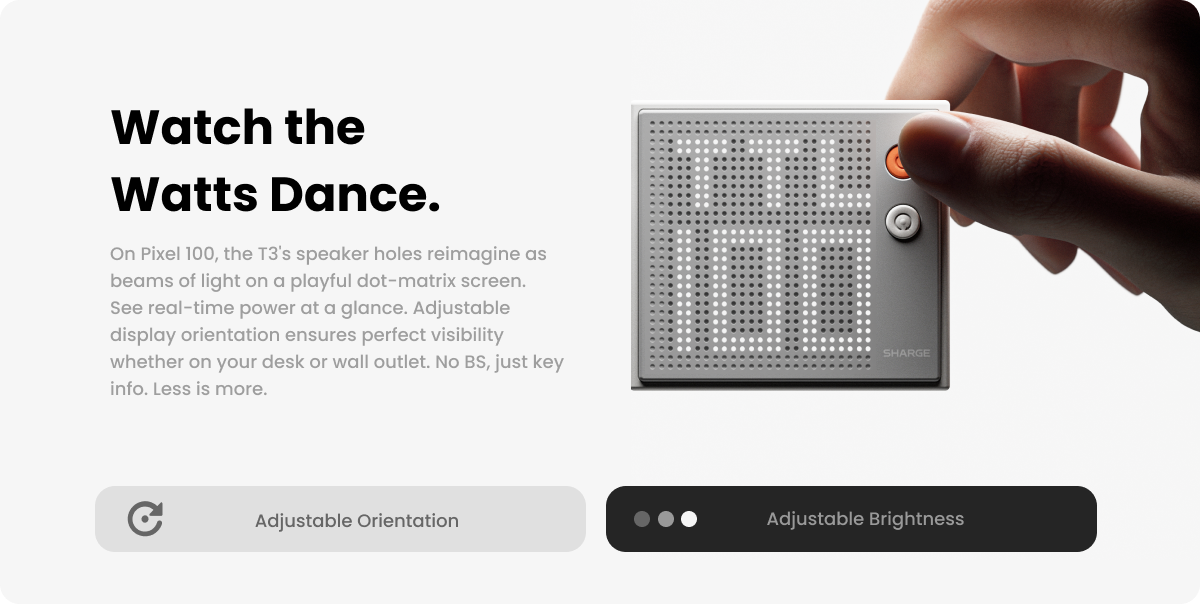

  • Intuitive dot-matrix display.
  • Minimalist clean design.
  • 100W max fast charging.

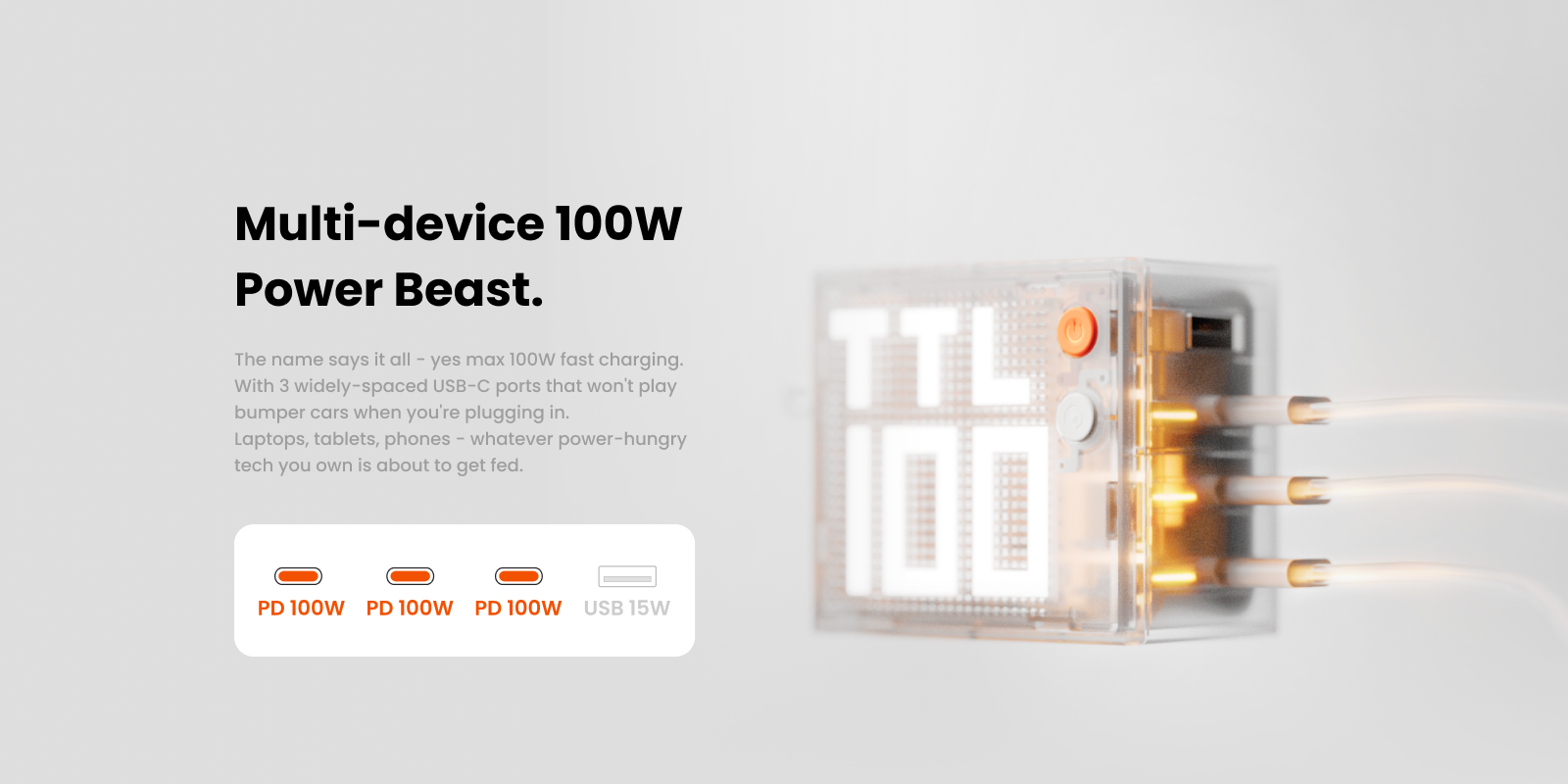

  • Extra-wide 4-port design.
  • Foldable plugs & compact size for easy on-the-go.

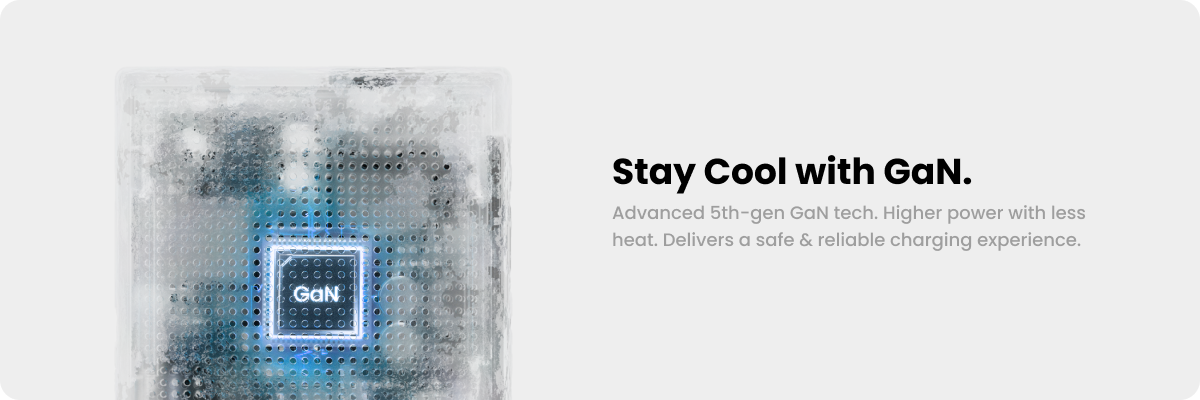

  • Advancved 5th-gen GaN technology.

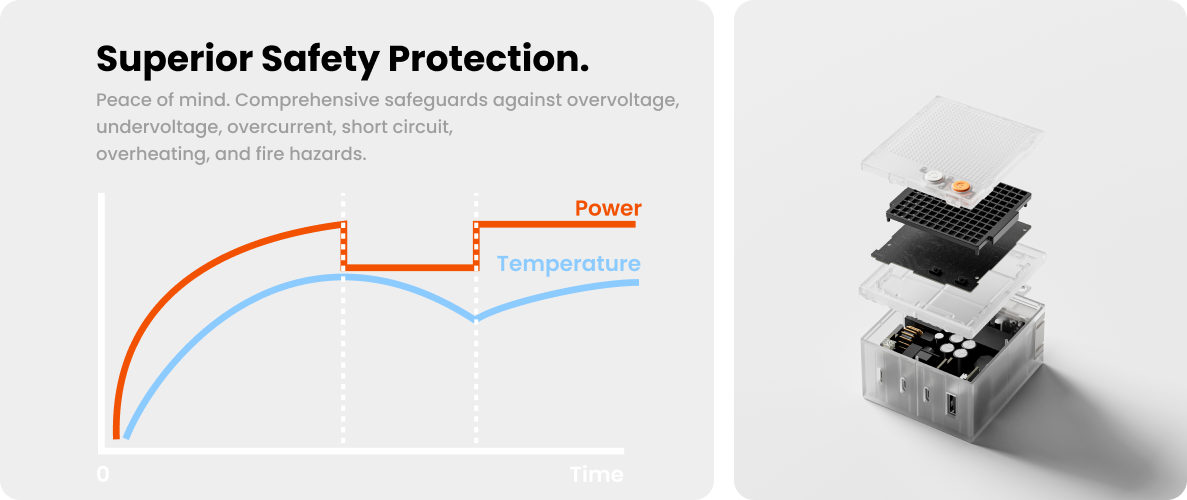

  • Comprehensive 6-layer protection.




















  Specification	Details
  Name	Pixel 100
  Model	S1
  Ports	USB-C × 3, USB-A × 1
  Supported Protocols	PD 3.1, PD 3.0, Apple, BC 1.2, QC 2.0, QC 3.0, QC 4.0+, AFC, FCP, SCP, SFCP, SFC 2.0, UFCS, PPS (5 A)
  Input	100 – 240 V ~ 50/60 Hz 2.5 A Max
  Output	USB-C1: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A USB-C3: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A USB-A: 5V⎓3A, 9V⎓2A, 12V⎓1.5A
  Combined Output	USB-C1 + USB-C2 / USB-C1 + USB-C3 / USB-C2 + USB-C3: 67W + 30W / 30W + 67W / 45W + 45W USB-C1/C2 + USB-A: 67W + 18W USB-C3 + USB-A: 5V⎓3A USB-C1 + USB-C2 + USB-C3: 45W + 30W + 20W / 30W + 30W + 30W USB-C1 + USB-C2 + (USB-C3 + USB-A): 45W + 30W + 15W / 60W + 20W + 15W
  Total Output	100 W (Max)
