SHARGE

• Product Feature

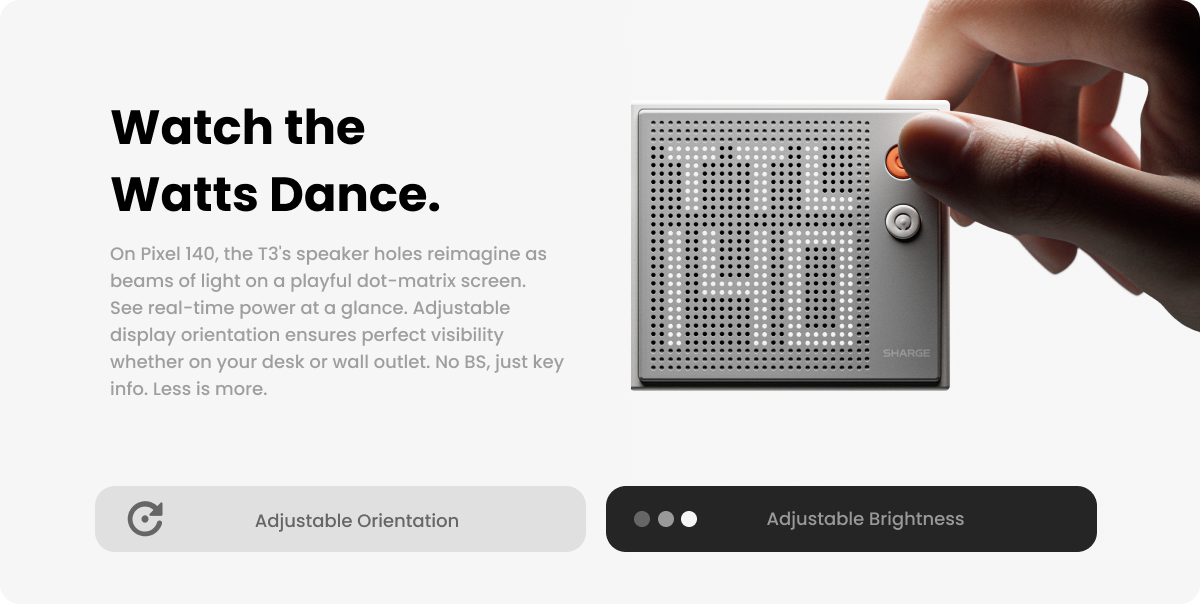

  • Intuitive dot-matrix display.

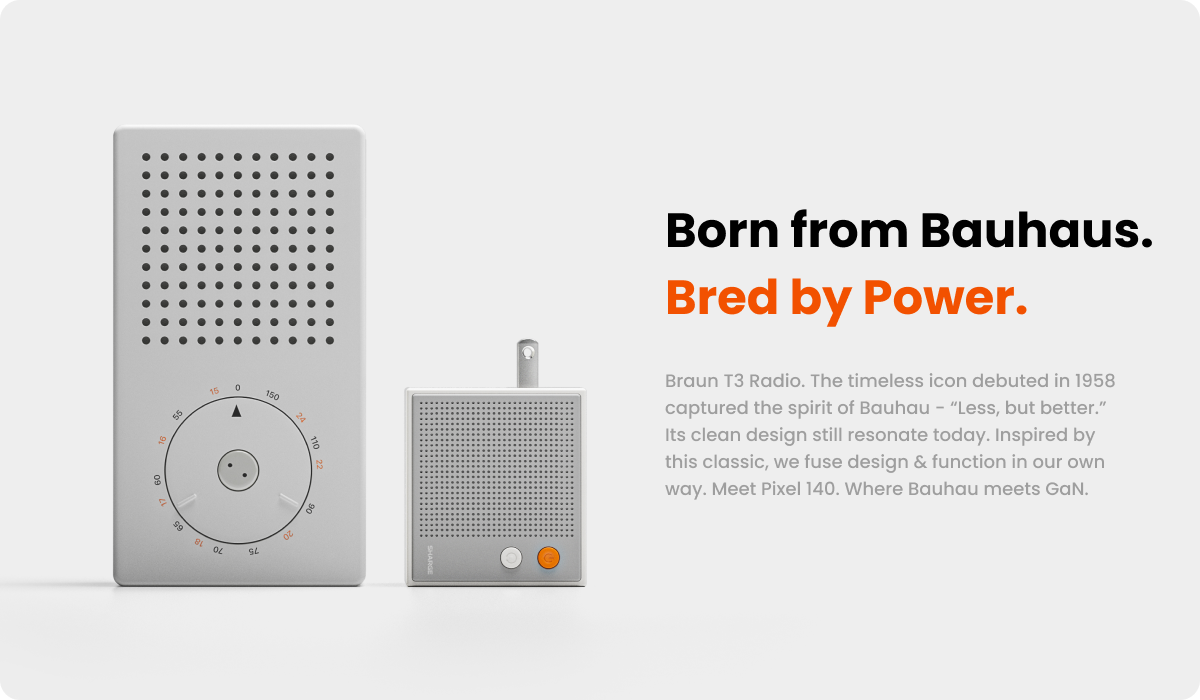

  • Minimalist clean design.
  • 140W max PD3.1 super fast charging.

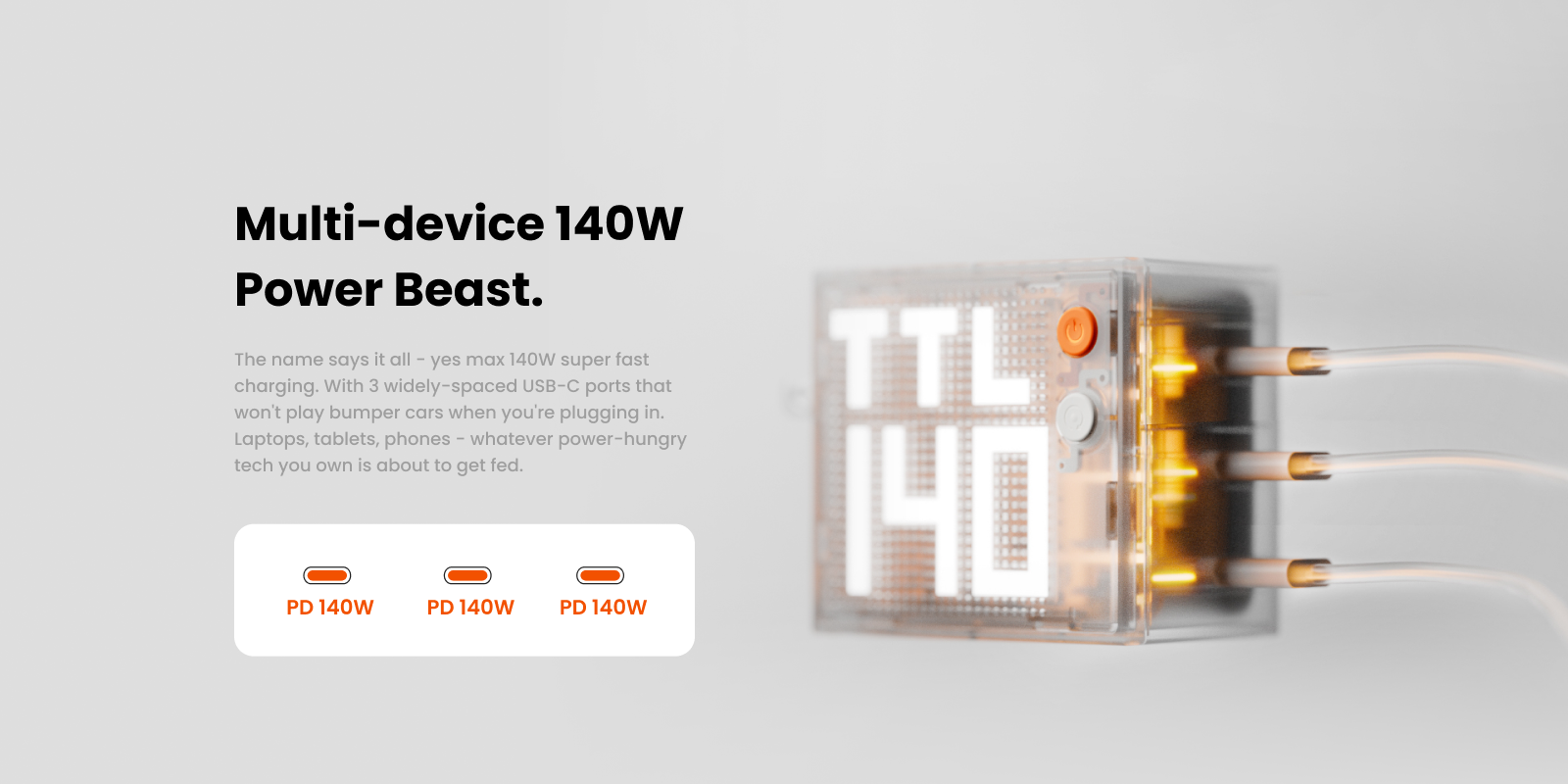

  • Extra-wide 3-port design.
  • Foldable plugs & compact size for easy on-the-go.
  • Advancved 5th-gen GaN technology.

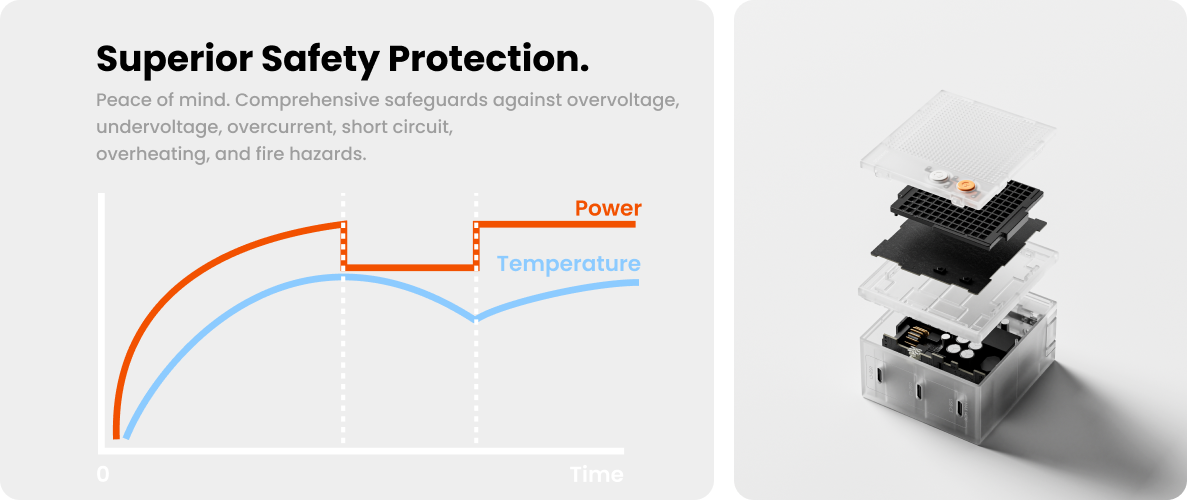

  • Comprehensive 6-layer protection.
















  Specification	Details
  Name	Pixel 140
  Model	S2
  Ports	USB-C × 3
  Supported Protocols	PD 3.1, PD 3.0, Apple, BC 1.2, QC 2.0, QC 3.0, QC 4.0+, AFC, FCP, SCP, SFCP, SFC 2.0, UFCS, PPS (5A)
  Input	100–240 V ~ 50/60 Hz 2.5 A Max
  Output	USB-C1: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A USB-C2: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A USB-C3: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A
  Combined Output	USB-C1 + USB-C2 / USB-C1 + USB-C3 / USB-C2 + USB-C3: 100W + 30W / 67W + 67W / 30W + 100W USB-C1 + USB-C2 + USB-C3: 67W + 30W + 30W / 45W + 45W + 30W
  Total Output	140 W Max
  Dimensions	64 × 58 × 37.2 mm / 2.5 × 2.3 × 1.5 in
  Weight	≈ 255 g / 0.56 lb
